Media
100% multi-denier synthetic
Airflow direction
Red upstream; purple downstream
Package
1 master roll per carton

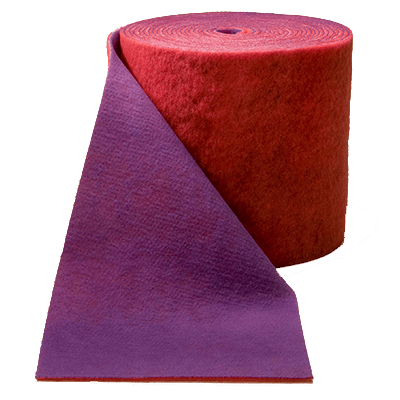

SprayStop STK-10
Koch SprayStop STK-10 is a synthetic paint-arrestor medium for air-dry coating materials, including lacquers and enamels. This item is one 61-inch × 90-foot master roll per carton.
Media and loading
- Durable 100% multi-denier synthetic media.
- Progressive-density construction is coarse on the entering-air side and becomes finer toward the exiting-air side for full-depth loading.
- Koch describes the media as vacuumable and reusable when condition and facility procedures permit.
- The manufacturer states that the media contains no harmful halogens.
Installation
Install the red side upstream and the purple side downstream. Confirm the booth stage, airflow direction, holding method, and cut dimensions before installation.
Manufacturer performance data
- Up to 96% removal efficiency in the manufacturer’s STK-10 data.
- Initial pressure drop: 0.14 in. w.g.
- Recommended final resistance: 1.0 in. w.g.
- Average fractional efficiency: 79.5% at 3 microns and 96% at 5 microns and larger.
Ordering check
Confirm that STK-10 synthetic media, a 61-inch roll width, and a 90-foot roll length match the installed application. Contact PFS Filters if the existing media or booth stage is uncertain.
Manufacturer reference: Koch Filter SprayStop STK-10 · Contact PFS Filters for fit or submittal help.
